How to use Yocan Kodo star

Welcome to the Yocan family. The Yocan Kodo Star‘s full-screen starlight design delivers a perfect experience from appearance to use. To help you quickly master the Yocan Kodo Star, please read our official user guide carefully.

Upon receiving your Yocan Kodo Star, you’ll first notice the Yocan logo and gift box packaging. After unboxing, you’ll find the contents include: – One Yocan Kodo Star device – One 30cm USB charging cable – One user manual

---

1.Fully charge the Yocan Kodo Star battery, then prepare a 510 thread atomizer.

2.Screw the 510 thread atomizer onto the Yocan Kodo Star. Simply twist it clockwise into the connector. Press the firing button five times within 2 seconds to power on.

3. Rapidly press the button five times within 2 seconds. If no operation occurs after powering on, the screen will turn off and enter sleep mode after 10 seconds

---

How to Properly Operate the Yocan Kodo Star Battery?

Yocan Kodo Star Output Power: After powering on, use the + and – buttons to adjust voltage within the 3.2V to 4.2V range. Full charging takes approximately 50 minutes. Battery level displays in 10% increments; shows 00% when depleted.

Preheat Function: While powered on, double-click the firing button within 0.9 seconds to activate preheat mode. During preheat, the screen displays 1.8V. To cancel preheat: Double-click the firing button within 0.9 seconds; Remove the atomizer (screen displays 0 ohms with no load); Hold the voltage adjustment button, then double-click the firing button.

Operating Duration: Press and hold the firing button to begin vaporization. The screen displays a countdown from 0 to 15 seconds. After shutdown, the last usage duration is displayed. Release the firing button to stop vaporization.

Voltage Adjustment: Voltage can be adjusted while charging, but not cyclically. Simultaneously pressing the voltage adjustment button and firing button disables voltage adjustment, regardless of load status.

Low Battery Protection: Output stops when battery voltage drops below 3.2V. Output also stops if voltage falls below 2.8V during use.

Short Circuit Protection: Output immediately stops if output terminals short circuit or resistance drops below 0.8Ω during use.

Overvoltage Protection: Low-voltage protection activates when USB input voltage exceeds 6.5V ± 0.5V or falls below 4.0V ± 0.5V, halting charging and cutting off charging current.

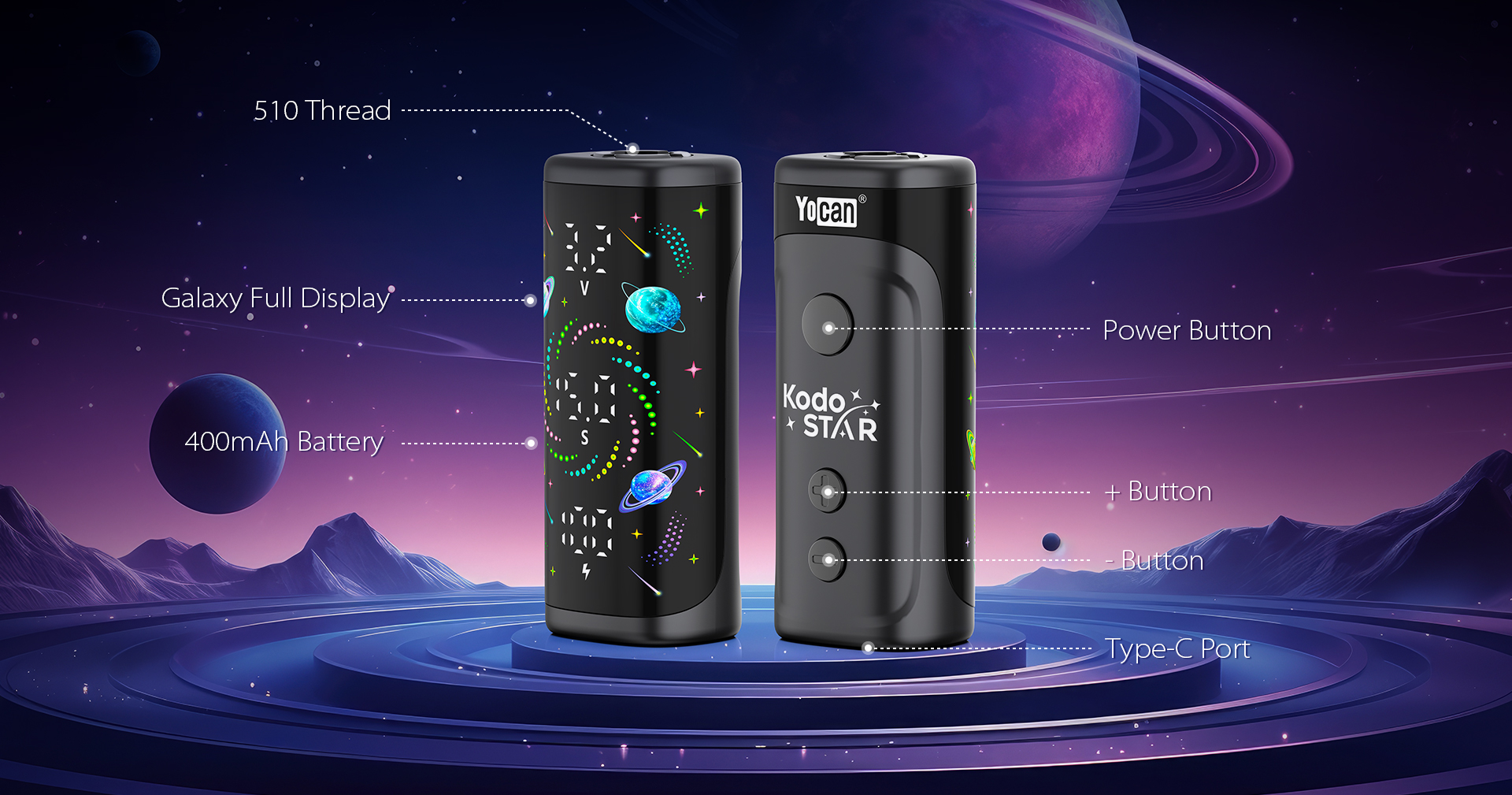

Yocan Kodo star Basic Parameters：

Battery Capacity: 400mAh
Size: 57*23*18.5mm
Voltage Range: 1.8-4.2V
Preheat: 1.8V/10 seconds
Coil Resistance: >0.8Ω
Safety Cut-off: 15 Seconds
Material: Plastic
Charging Type: 5V/1A Type-C
Charging Time: 0.8h

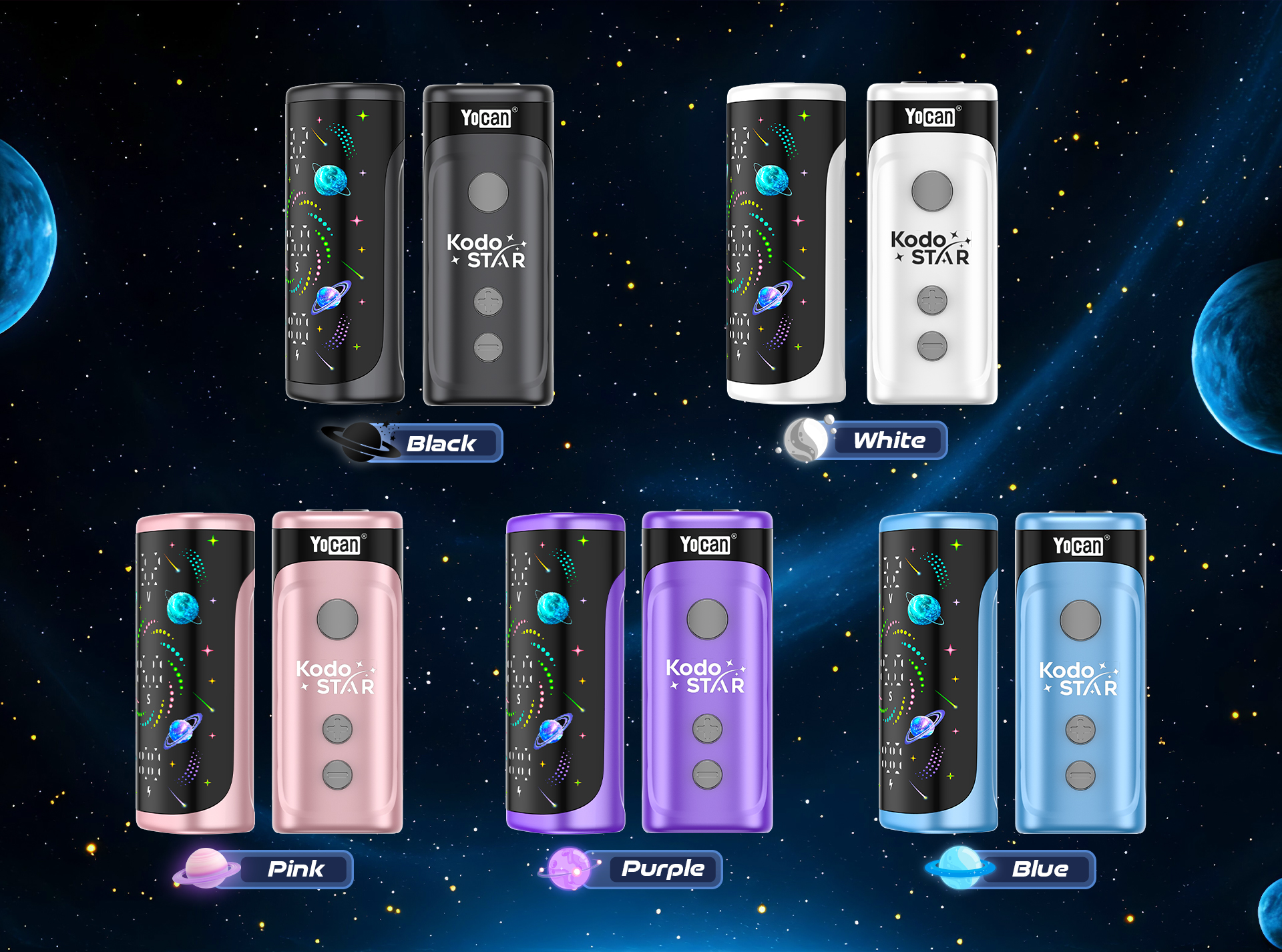

Colors: Black; White; Blue; Pink; Purple

May the Yocan Kodo Star make every step feel like strolling through the stars.If you have any questions about using the Yocan Kodo Star product，Please leave a comment and we will promptly address your concerns.
